Jacksonville Stucco Resource Center

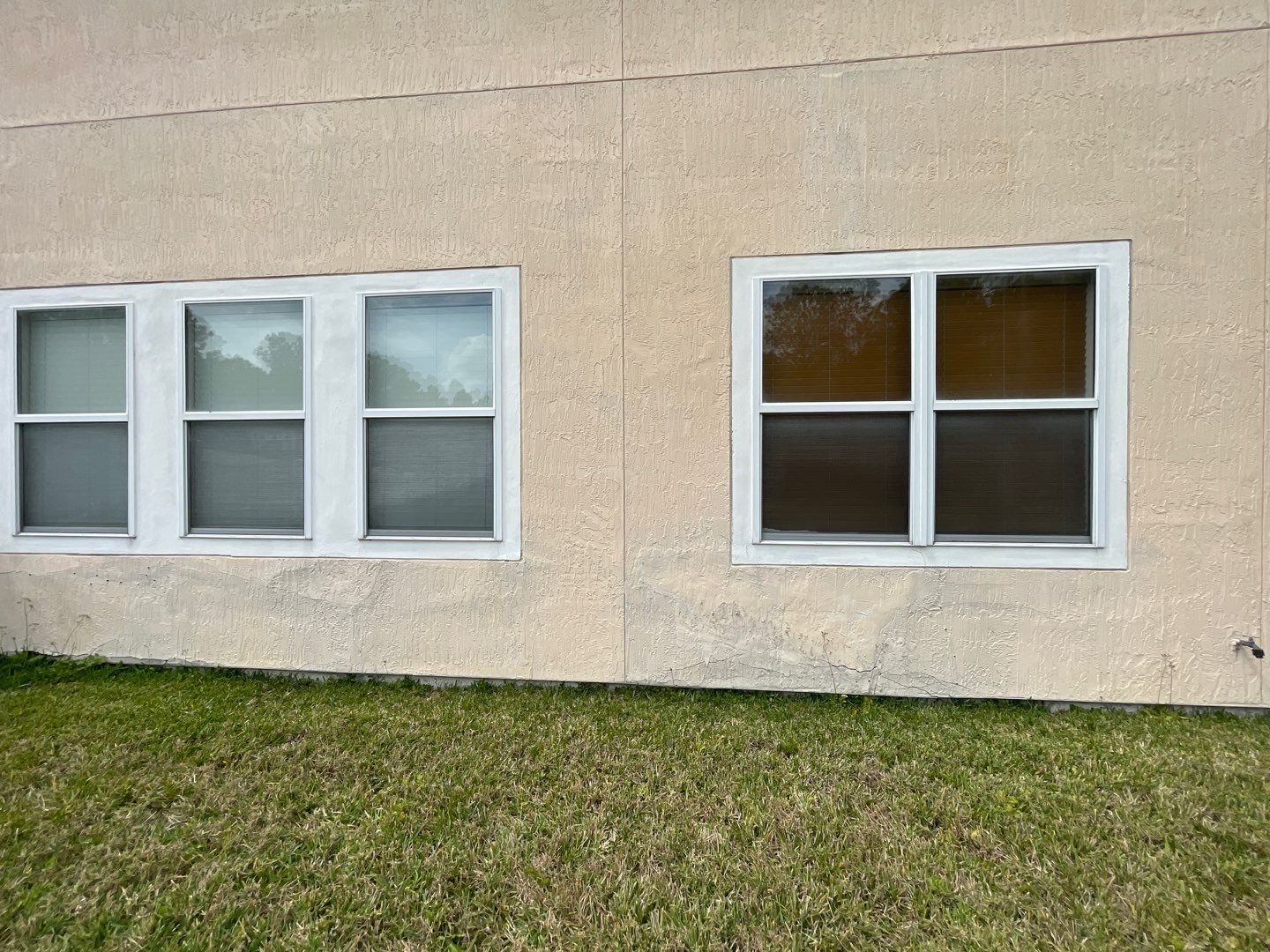

Bulging — the wall surface protrudes beyond adjacent areas.

Delamination — stucco has separated from another layer or from the substrate.

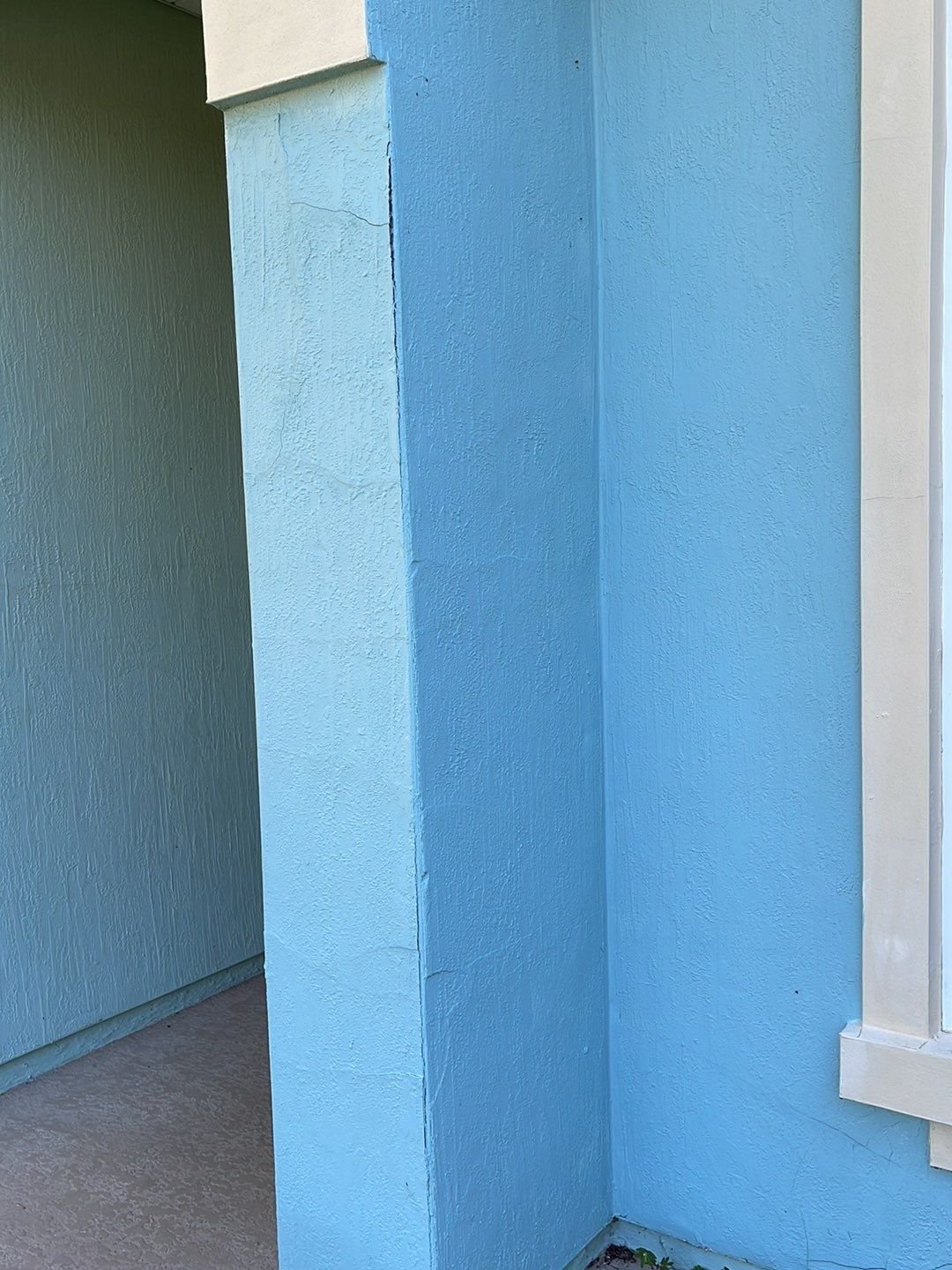

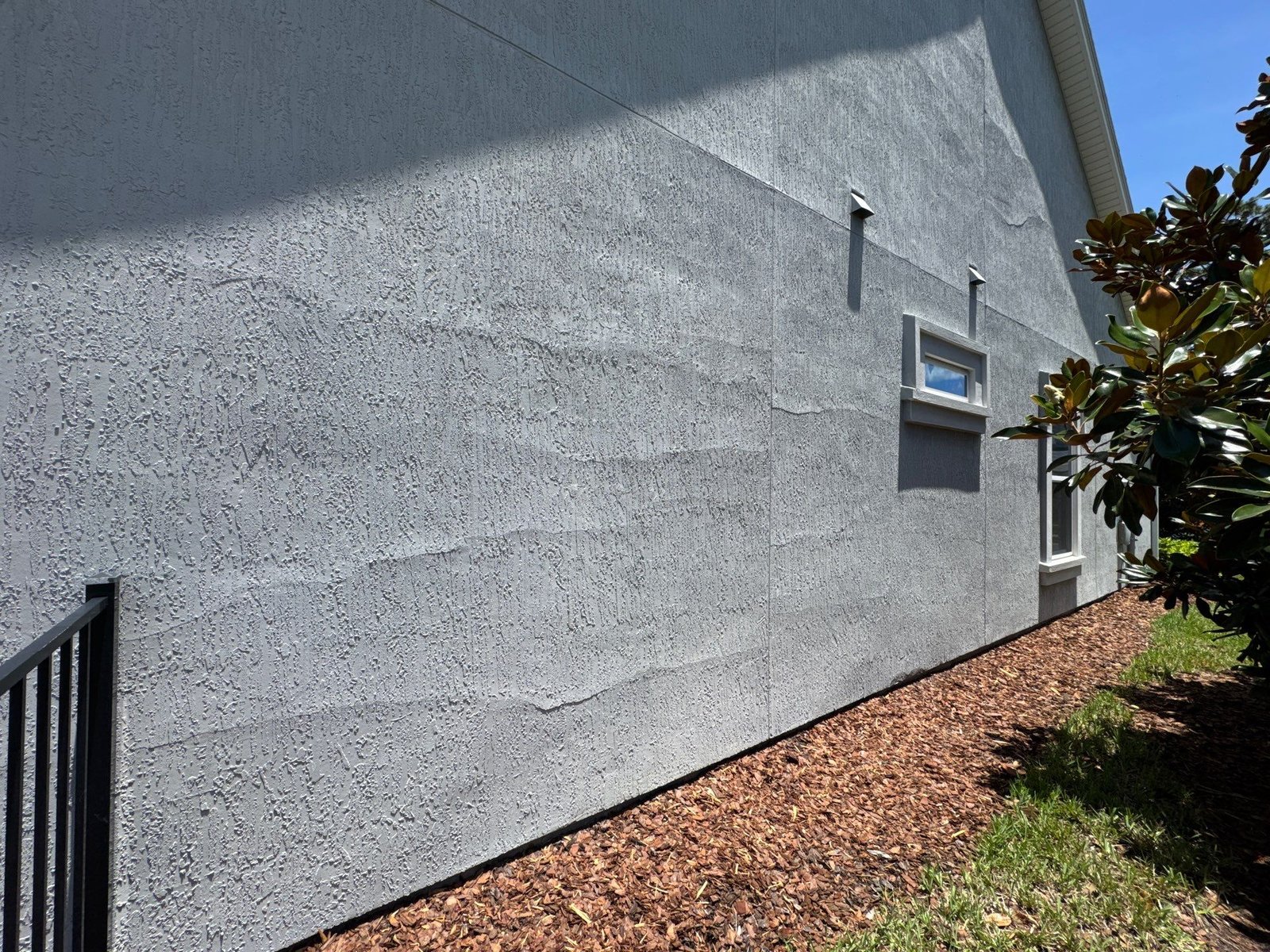

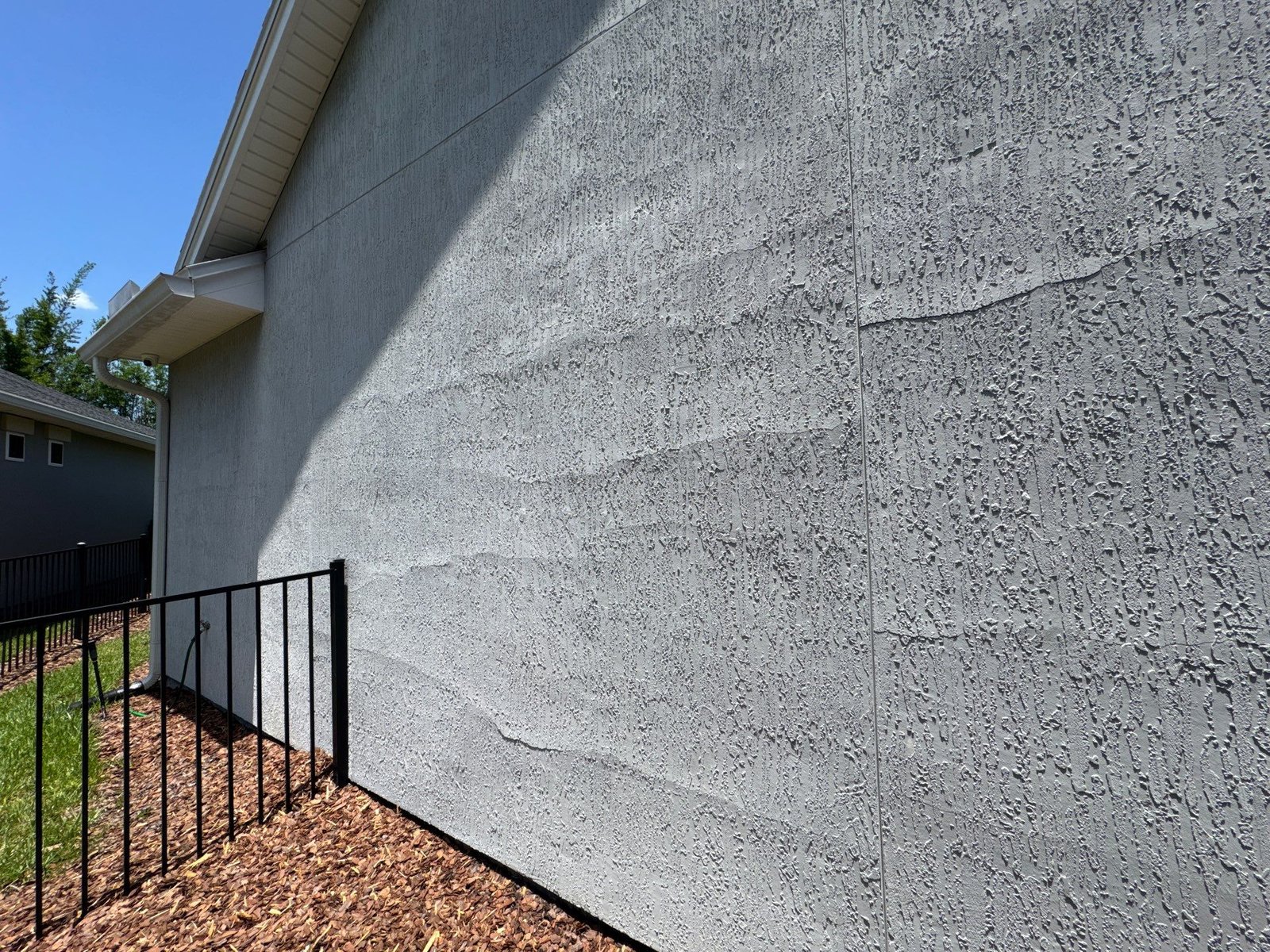

Cracking — may exist on its own, or accompany bond failure.

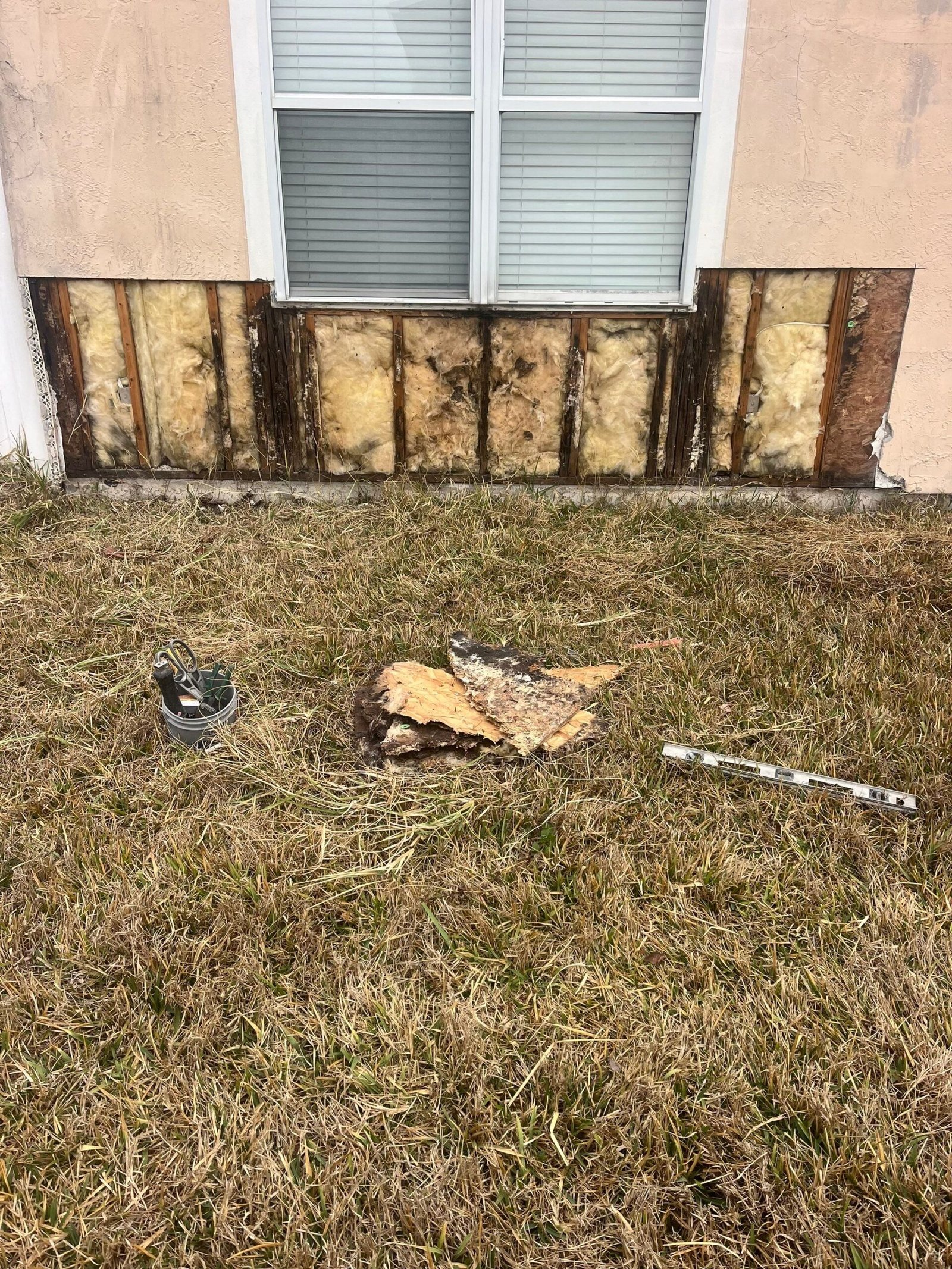

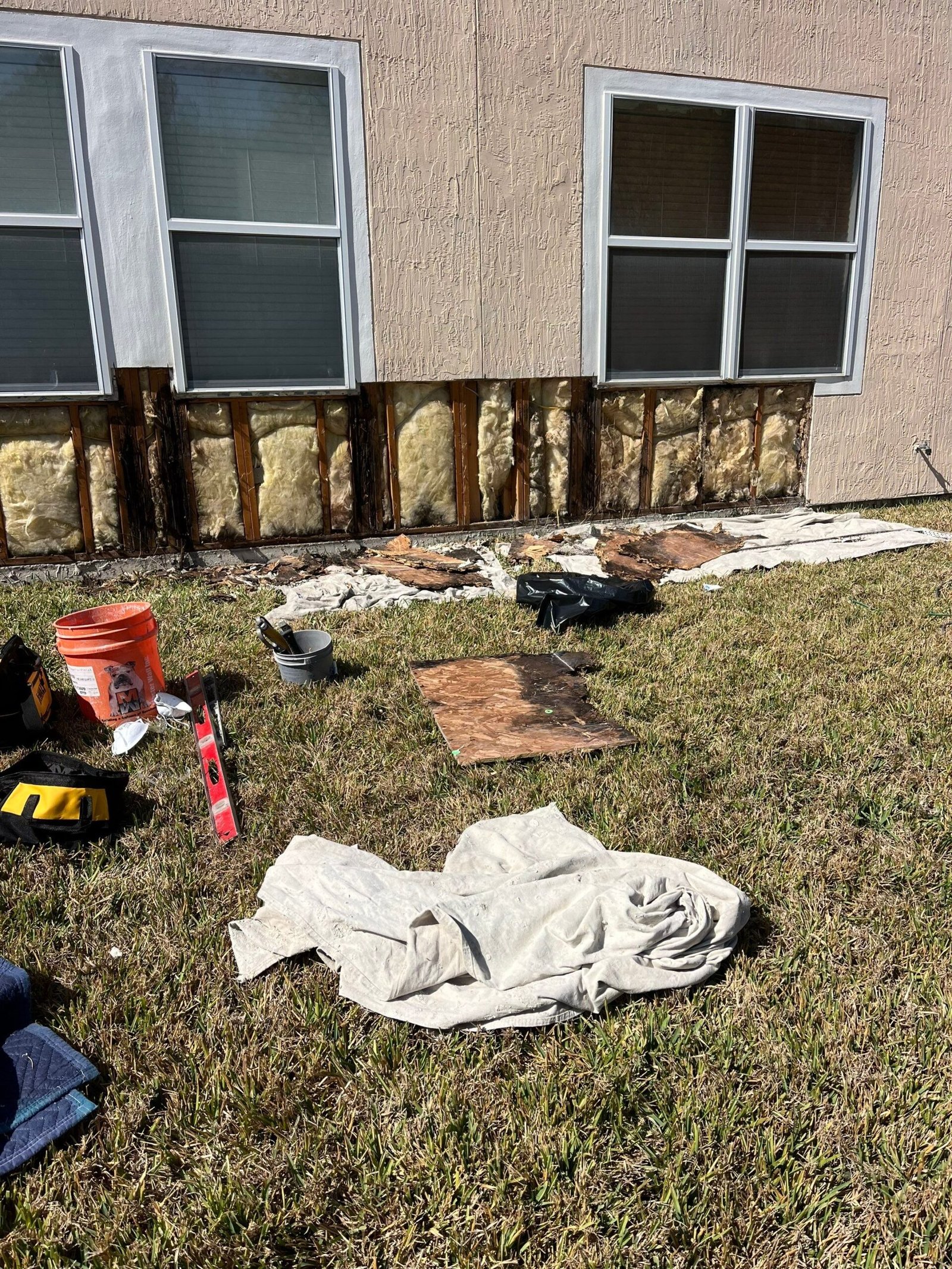

Exposed sheathing — only becomes visible after failed finish material has been removed.

Northeast Florida puts a specific combination of conditions on an exterior wall: sustained UV through most of the year, frequent heavy rainfall, wind-driven rain that presses water against and into openings rather than simply falling on them, high humidity that extends how long surfaces stay wet, and repeated wet-and-dry cycling.

Add the things that vary house to house — irrigation striking lower walls, mature canopy shading one elevation while another takes full afternoon sun, large uninterrupted stucco elevations, and the number and detailing of window and door openings — and two homes built the same year can age very differently.

Exposure varies across the region as well. An inland Mandarin or Julington Creek home doesn't face what a Jacksonville Beach, Neptune Beach, or Ponte Vedra Beach property does in terms of coastal salt exposure. Riverfront and Intracoastal homes see more wind-driven rain on the water-facing elevation. Older masonry housing behaves differently from newer master-planned construction in Nocatee or St. Johns.

Not every Jacksonville house is built the same way. A stucco wall can involve very different assemblies — stucco applied directly to concrete block, or stucco over lath on a framed wall with a water-resistive barrier and drainage behind it. Flashing, sealant joints, and openings all play a role in how water is managed. What that means practically: advice written for one assembly doesn't automatically apply to the other, and the finish you can see is not the whole water-management system.

This distinction matters more than most homeowners realize, because the two systems behave differently and are repaired and coated differently.

Traditional stucco is portland cement plaster — a cementitious material applied over masonry or over lath on a framed wall. Synthetic stucco systems, including EIFS and Dryvit-type assemblies, use insulation board with a thin synthetic finish over it. They look similar from the street. They are not the same construction.

Wall construction differs. Moisture behavior differs. Repair methods differ. Coating considerations differ. Treating an EIFS wall as though it were cement stucco — or specifying a coating for one that was intended for the other — can create problems rather than solve them.

Synthetic stucco, EIFS and Dryvit vs. traditional stucco explains how to tell them apart and why they're painted completely differently.

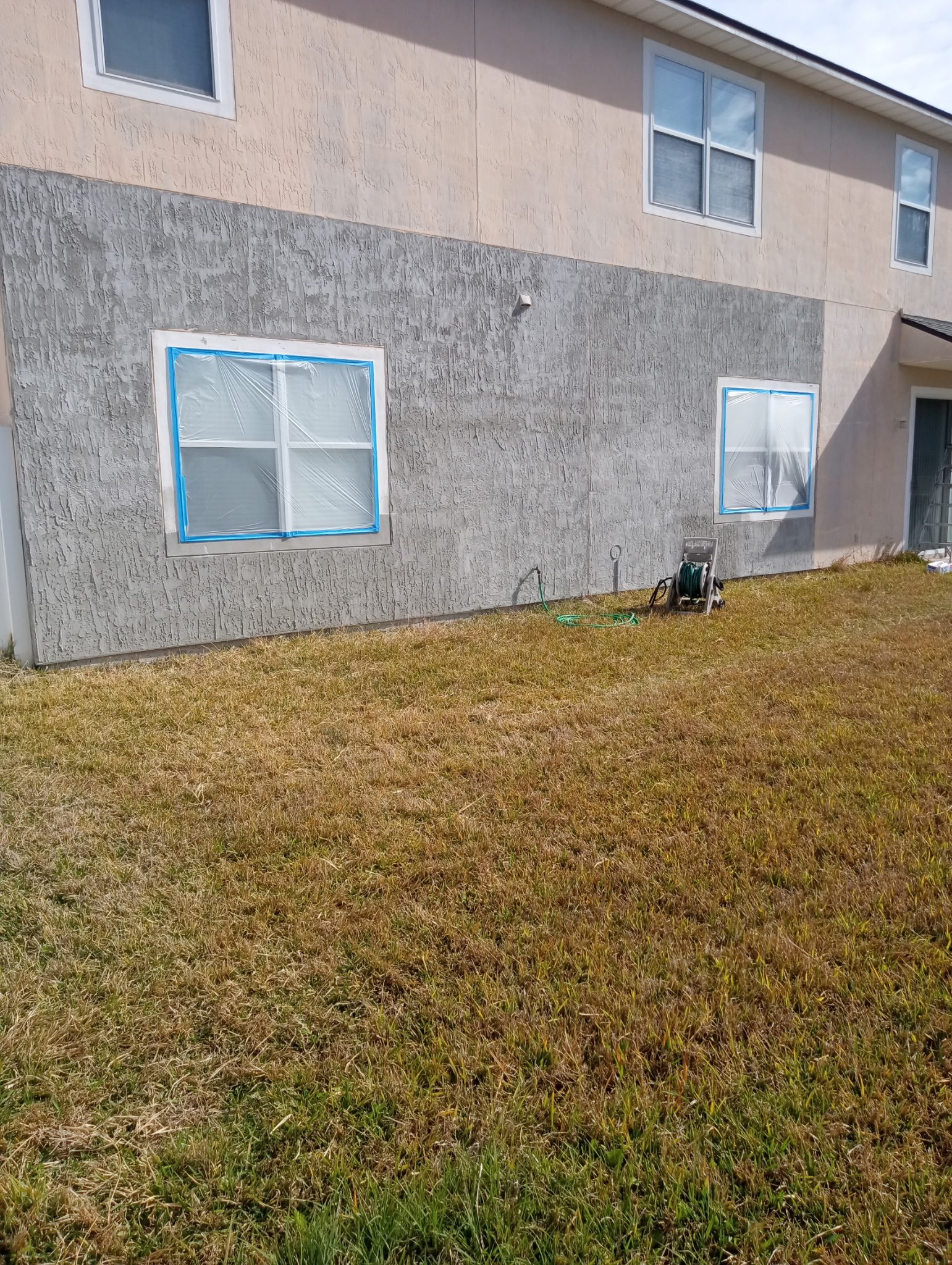

Repair on a stucco exterior follows a sequence, and the order matters as much as the work itself.

1. Determine what the symptom actually isCoating failure and substrate failure can look identical in a photograph.

2. Inspect the surrounding conditionsThe wall around the symptom usually carries more information than the symptom.

3. Identify sound vs. unsound materialWhere does solid, bonded stucco begin and end?

4. Address active moisture sources where visible or knownRepairing around an unresolved water source repeats the failure.

5. Remove failed material where appropriateBack to sound substrate, so the repair has something to key into.

6. Repair cracks based on how they behaveA stable crack and a moving joint call for different materials.

7. Repair appropriate stucco defectsWithin the scope a repair and painting contractor can properly address.

8. Address failed sealantRemoved, joint prepared, and replaced with an appropriate exterior sealant.

9. Match texture as closely as practicalGood matching can be very good. Perfectly invisible isn't something to promise.

10. Allow appropriate cure and dry conditionsCompressing this to keep a schedule moving undermines everything above it.

11. Prime according to substrate and product requirementsFresh repairs absorb differently than the coated wall around them.

12. Apply the coating system suited to the wallThe last decision, not the first.

The complete stucco repair process walks through this in full. When you're ready for work rather than reading, our stucco repair services page covers scope and how projects are handled.

Sometimes the right painting decision is not to paint yet.

Painting is worth delaying when active moisture remains unresolved, large areas are loose or delaminated, significant movement appears to be occurring, persistent window leakage is suspected, widespread embedded corrosion is suspected, repeated repair failures remain unexplained, or the substrate simply isn't sound.

In those situations, another professional may be the right next step — a structural engineer where movement is suspected, a building-envelope consultant, a waterproofing contractor, a specialized stucco contractor, or a window and flashing professional. We evaluate visible exterior conditions within our repair and painting scope and recommend additional evaluation when conditions suggest something beyond it. We don't perform invasive moisture testing, bond testing, or engineering analysis.

The introductory question, answered plainly — including when stucco shouldn't be painted yet.

Start here if you're new to this

Failure diagnosis — what peeling on stucco indicates and how to trace it to a cause.

Diagnose peeling

Realistic performance expectations for Jacksonville stucco, and the variables that move the number.

Set expectations

Elastomeric systems have legitimate uses. Correctly specified, they can bridge certain small stable surface cracks, provide a flexible high-build film, and improve weather resistance as part of an appropriate system.

They cannot stop active structural movement, repair delaminated stucco, reattach loose material, eliminate an active water source, repair embedded corrosion, or replace correct crack and joint repair. Equally, a quality acrylic masonry coating is not an inferior choice — on sound stucco with limited stable cracking, it may be exactly right. Product specification follows the wall.

On projects where conditions call for it, we specify a hybrid approach: a Sherwin-Williams Loxon XP masonry base with an Emerald Rain Refresh topcoat. The reasoning is straightforward — a masonry-oriented base coat doing the substrate work, with a premium finish handling color retention, weather exposure, and cleanability. That's a system we use where it fits, not a requirement for every stucco home, and it doesn't resolve structural or moisture conditions.

These aren't separate topics that happen to share a wall. They're often stages of the same story — though not every wall follows the whole sequence, and much depends on the assembly.

A crack formsFrom shrinkage, movement, stress at an opening, or a material transition. It may stay cosmetic — or become a path.

Moisture may moveThrough the crack, or entering elsewhere and traveling behind the finish before emerging.

Corrosion or loss of bond may accompanyRust staining · bulging · hollow-sounding areas · loose stucco · delamination.

A repair may recurWhen movement remains, moisture remains, the wrong material was used, or the substrate was unsound.

Paint failure appearsWhich can be coating-specific — or evidence of something happening beneath it.

Portland cement plasterThe technical name for traditional stucco — a cementitious finish applied over masonry or lath.

SubstrateWhatever the stucco or coating is applied to. Concrete block, lath, or an existing coating.

BondThe attachment between layers, or between stucco and its substrate. Loss of bond is what delamination describes.

DelaminationSeparation between layers, or between the stucco and the wall behind it. Paint cannot reverse it.

LathThe metal or other reinforcement stucco is applied over in framed-wall assemblies.

Hairline crackVery narrow cracking, often visible only in angled light. Common in cement-based finishes.

Spider or map crackingA dense network of fine interconnected cracks, frequently associated with the finish coat and curing conditions.

Control jointA planned break in the stucco giving shrinkage and movement a designated place to occur.

Expansion / movement jointA joint designed to accommodate movement between building components. Not a defect, and not something to fill rigidly.

SealantThe flexible material at joints and transitions. Different from rigid patching compound, and not interchangeable with it.

EfflorescenceWhite mineral deposits left when moisture carries soluble salts to the surface and evaporates.

Acrylic coatingA premium exterior paint chemistry commonly used on properly prepared masonry and stucco.

Elastomeric coatingA thicker, more flexible coating that can bridge certain small stable cracks. Not a repair material.

Permeability / breathabilityHow readily a coating allows moisture vapor to pass. Matters on masonry, where trapped vapor causes problems.

FlashingMaterials that direct water away from vulnerable points — openings, roof-to-wall junctions, penetrations.

Water-resistive barrier (WRB)A layer behind the cladding in some assemblies that manages water reaching it. Concealed by definition.

EIFSExterior Insulation and Finish System — insulation board with a synthetic finish. Not cement stucco.

DryvitA widely recognized brand of synthetic stucco system, often used generically for EIFS-type walls.
